AFHP系列 重载 公路用预滤器
AFHP系列
重载，公路用空气预滤器
重载，公路用空气预滤器
适用于移动设备
应用

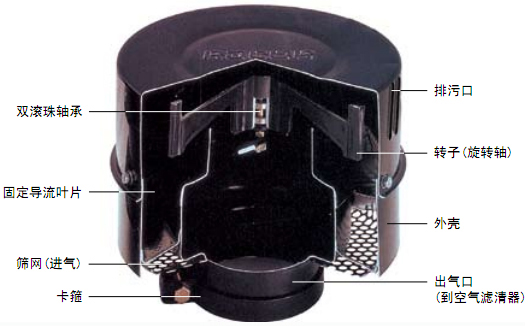

Racor 发动机空气预滤器可直接安装或连接到汽/柴油发动机的空气滤清器进口。
应用包括
● 所有快速移动的动设备例如卡车，汽车和游览车
特点及优点
● 能去除高达80%的空气杂质；
● 紧凑型设计；
● 底进气设计消除水的侵入；
● 安装简单，每套组件提供3套塑料变径接管。
| 型号 | 空气流量 | 功率范围 | 重量 | 大高度 | 大直径 | 出口尺寸 |
| AFHP21 |
35-53 CFM [1.0-1.5m3/min] |
15-30 HP [11-22 KW] |
1.30 lbs [0.6 kg] |
4.00" [102 mm] |
5.24" [133 mm] |
2" [51 mm] |
| AFHP31 |
53-124 CFM [1.5-3.5m3/min] |
30-60 HP [22-45 KW] |
2.40 lbs [1.10 kg] |
6.06" [154 mm] |
7.00" [178 mm] |
3-2.75-2.5" [76-70-63 mm] |
| AFHP41 |
124-247 CFM [3.5-7.0m3/min] |
60-120 HP [45-90 KW] |
3.40 lbs [1.55 kg] |
7.00" [178 mm] |
8.50" [216 mm] |
3.25-3-2.75-2.5" [82-76-70-63 mm] |
| AFHP42 |
124-247 CFM [(3.5-7.0m3/min] |
60-120 HP [45-90 KW] |
3.50 lbs [1.60 kg] |
7.00" [178 mm] |
8.50" [216 mm] |
4-3.75-3.5-3.25" [102-95-89-82 mm] |
| AFHP81 |
247-388 CFM [7.0-11.0m3/min] |
120-160 HP [90-120 KW] |
4.20 lbs [1.90 kg] |
8.07" [205 mm] |
9.58" [243 mm] |
3.25-3-2.75-2.5" [82-76-70-63 mm] |
| AFHP82 |
247-388 CFM [7.0-11.0m3/min] |
120-160 HP [90-120 KW] |
4.30 lbs [1.95 kg] |
8.07" [205 mm] |
9.58" [243 mm] |
4-3.75-3.5-3.25" [102-95-89-82 mm] |
| AFHP83 |
247-388 CFM [7.0-11.0m3/min] |
120-160 HP [90-120 KW] |
4.40 lbs [2.00 kg] |
8.07" [205 mm] |
9.58" [243 mm] |
4.5-4.33-4-3.75" [114-110-102-95 mm] |
| AFHP91 |
388-530 CFM [11.0-15.0m3/min] |
160-220 HP [120-165 KW] | 5.20 lbs [2.35 kg] |
8.15" [207 mm] |
11.02" [280 mm] |
4.5-4.33-4-3.75" [114-110-102-95 mm] |
| AFHP92 |
388-530 CFM [11.0-15.0m3/min] |
220-300 HP [165-225 KW] | 5.50 lbs [2.50 kg] |
8.15" [207 mm] |
11.02" [280 mm] |
5.25-5-4.75-4.5" [133-127-121-114 mm] |
| AFHP111 |
530-776 CFM [15.0-22.0m3/min] |
220-300 HP [165-225 KW] |
6.50 lbs [2.95 kg] |
7.87" [200 mm] |
12.20" [310 mm] |
5.25-5-4.75-4.5" [133-127-121-114 mm] |
| AFHP112 |
530-776 CFM [15.0-22.0m3/min] |
220-300 HP [165-225 KW] | 6.60 lbs [3.00 kg] |
7.87" [200 mm] |
12.20" [310 mm] |
6-5.5-5.25-5" [152-140-133-127 mm ] |
| AFHP211 |
776-1059 CFM [21.0-30.0m3/min] |
300-400 HP [225-300 KW] |
8.40 lbs [3.80 kg] |
9.13" [232 mm] |
14.17" [360 mm] |
6-5.5-5.25-5" [152-140-133-127 mm] |
| AFHP212 |
776-1059 CFM [21.0-30.0m3/min] |
300-400 HP [225-300 KW] |
8.80 lbs [4.00 kg] |
9.13" [232 mm] |
14.17" [360 mm] |
7-6.75-6.5-6.25" [178-171-165-159 mm] |
| AFHP411 | 1059-1411 CFM [30.0-40.0m3/min] | 400-550 HP [300-410 KW] | 12.40 lbs [5.60 kg] |
10.35" [263 mm] |
17.30" [435 mm] |
7-8" [178-203 mm] |
