曼胡默尔旋转滤清器用双接头
如果旋装滤清器安装版采用内螺纹，则需要安装滤清器双接。

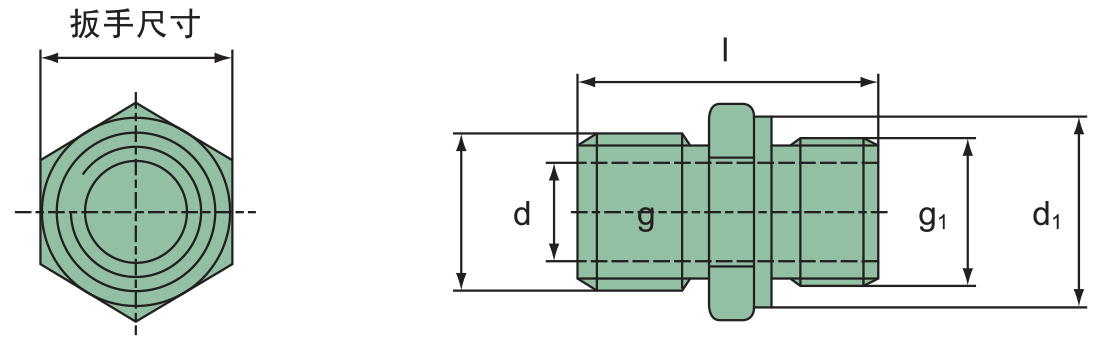

| 订货编号 | 尺寸mm | |||||
| g | g1 | d | d1 | l | 扳手规格 | |
| 2101415191 | M14x1.5 | G 1/4" | 6 | 18 | 29 | 19 |
| 2101415331 | M14x1.5 | M14X1.5 | 6 | 19 | 31 | 19 |
| 2101615211 | M16x1.5 | M14X1.5 | 8 | 19 | 34 | 19 |
| 2101715181 | G 3/8" | M14X1.5 | 5 | 19 | 29 | 22 |
| 2101815141 | M18x1.5 | M16X1.5 | 8 | 23 | 32 | 24 |
| 2101815331 | M18x1.5 | M18X1.5 | 12 | - | 25 | 24 |
| 2101915111 | M18x1.5 | 3/4-16UNF | 13 | - | 35.5 | 24 |
| 2102015131 | M20x1.5 | 3/4-16UNF | 13 | - | 30.5 | 24 |
| 2102215291 | M22x1.5 | M18X1.5 | 15 | - | 38 | 24 |
| 2102415101 | M24x1.5 | M16X1.5 | 10 | - | 37 | 27 |
| 2102415121 | M24x1.5 | 3/4"-16UNF | 13 | - | 37 | 27 |
| 2102415131 | M24x1.5 | M20X1.5 | 14 | - | 37 | 27 |
| 2102515101 | M24x1.5 | 1"-12UNF | 18 | - | 37 | 27 |
| 2102515141 | M24x1.5 | 1"-16UN | 16 | - | 36.35 | 27 |
| 2102615381 | 1"-14UN | M30X1.5 | 18 | - | 40 | 32 |
| 2102915101 | M26X1.5 | 1 1/8"-16UN | 18 | - | 40 | 32 |
| 2103015251 | M30X1.5 | 1 1/8"-16UN | 22 | - | 40 | 32 |
| 2103215201 | 1 1/4"-12UNF | M30X1.5 | 22 | - | 41 | 36 |
| 2103215211 | M32X1.5 | M30X1.5 | 18 | - | 42 | 36 |
| 2103915101 | M38X1.5 | 1 1/2"-16UN | 30 | - | 41 | 46 |
| 2103915171 | 1 1/2"-16UN | M36X1.5 | 25 | - | 42.5 | 41 |
