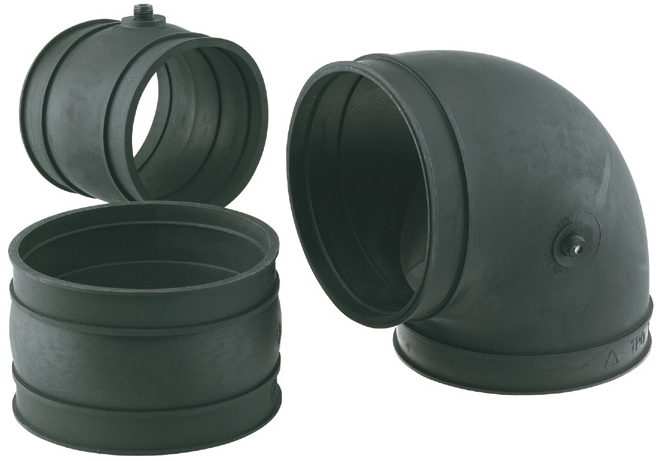

曼胡默尔空气连接件弯管
| 订货编号 | 图例 |
尺寸mm |
接口 | ||||
| b | c | di | da | e | |||
| 3910025999 | 1 | 57 | - | 50 | 55 | 25 | - |
| 3910025979 | 2 | 57 | 33 | 50 | 55 | 25 | M10x1 |
| 3920025999 | 1 | 62 | - | 60 | 65 | 25 | - |
| 3920025979 | 2 | 62 | 38 | 60 | 65 | 25 | M10x1 |
| 3930025999 | 1 | 72 | - | 70 | 75 | 28 | - |
| 3930025979 | 2 | 72 | 43 | 70 | 75 | 28 | M10x1 |
| 3940025999 | 1 | 77 | - | 80 | 85 | 30 | - |
| 3940025979 | 2 | 77 | 48 | 80 | 85 | 30 | M10x1 |
| 3950025999 | 1 | 92 | - | 100 | 105 | 35 | - |
| 3950025979 | 2 | 92 | 58 | 100 | 105 | 35 | M10x1 |
| 3960025999 | 1 | 89 | - | 110 | 119 | 27 | - |
| 3960025979 | 2 | 89 | 63 | 110 | 119 | 27 | M10x1 |
| 3970025999 | 1 | 98.5 | - | 130 | 135 | 27 | - |
| 3970025979 | 2 | 98.5 | 75 | 130 | 135 | 27 | M10x1 |
| 3980025999 | 1 | 108.5 | - | 150 | 155 | 27 | - |
| 3980025979 | 2 | 108.5 | 83 | 150 | 155 | 27 | M10x1 |
| 3993025999 | 1 | 170 | - | 196 | 200 | 30 | - |
| 3993025979 | 2 | 170 | 98.5 | 196 | 200 | 30 | M10x1 |
