曼胡默尔Pico-E单级空气滤清器托架
| 订货编号 |
适用于 Pico-E |

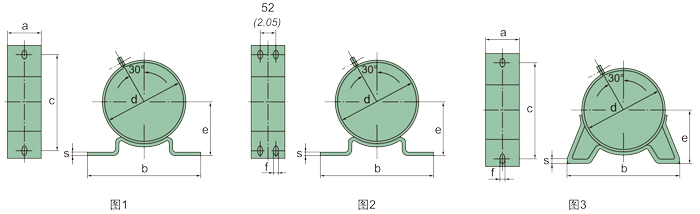

图例 | 尺寸mm |
大约重量 ［kg］ |
||||||
| a | b | c | d | e | f | s | ||||
| 4507638980 | 4407675204 | 1 | 40 | 190 | 150 | 130 | 75 | 10 | 3 | 0.7 |
| 4511438990 | 4411475204 | 1 | 60 | 190 | 150 | 150 | 85 | 10 | 3 | 0.7 |
| 4516538980 | 4416575204 | 1 | 60 | 220 | 180 | 170 | 110 | 10 | 3 | 0.8 |
| 4522538990 | 4422575204 | 1 | 80 | 240 | 200 | 190 | 125 | 10 | 3 | 1.0 |
| 3905638980 | 4432575204 | 1 | 80 | 280 | 240 | 240 | 130 | 12 | 3 | 1.5 |
| 4544038990 | 4444075204 | 2 | 80 | 310 | 270 | 270 | 155 | 12 | 3 | 1.6 |
| 3944038990 | 4465075204 | 2 | 80 | 310 | 270 | 290 | 165 | 12 | 3 | 1.7 |
| 3988038940 | 4488075204 | 2 | 80 | 310 | 270 | 345 | 195 | 12 | 3 | 1.9 |
| 4588038990 | 4492075204 | 2 | 80 | 310 | 270 | 370 | 210 | 12 | 3 | 2.0 |
| 4594038841 | 4595075104 | 3 | 45 | 580 | 520 | 610 | 325 | 14 | 3 | 3.5 |
