曼胡默尔双向通风空气滤清器（干式空气滤清器）尺寸和订货编号

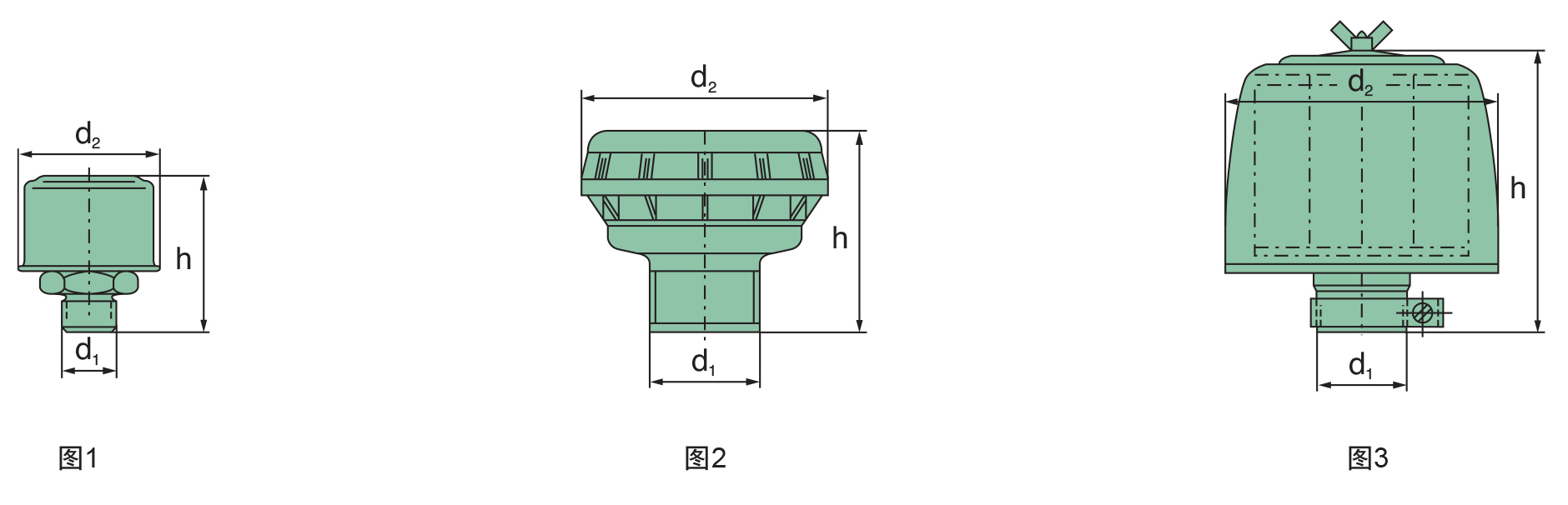

| 订货编号 | 图例 |
额定流量 [m3/min] |
开启压力 [bar] [kpa] |
尺寸mm |
曼牌滤清器 主滤芯 |
大约重量 [kg] |
||
| d1 | d2 | h | ||||||
| 4500162185 | 1 | - | - - | M18x1.5 | 45 | 47 | -1) | 0.08 |
| 4500365900 | 2 | - | - - | 35 | 80 | 65 | -1) | 0.06 |
| 4500362902 | 2 | - | - - | G3/4 | 80 | 73.5 | -1) | 0.08 |
| 45003629002) | 2 | 0.2 | 0.85 85 | G3/4 | 80 | 73.5 | -1) | 0.1 |
| 45003629012) | 2 | 0.2 | 0.35 35 | G3/4 | 80 | 73.5 | -1) | 0.1 |
| 4500972146 | 3 | 0.5 | - - | M26X1.5 | 98 | 110 | C75/4 | 0.3 |
| 4500977106 | 3 | 0.5 | - - | 20 | 98 | 110 | C75/4 | 0.3 |
| 4502177125 | 3 | 2.0 | - - | 40 | 132 | 120 | C1112 | 0.5 |
| 4503277105 | 3 | 3.5 | - - | 52 | 132 | 152 | C1132 | 0.65 |
| 4503777015 | 3 | 4.5 | - - | 60 | 170 | 175 | C1337 | 1.1 |
| 4507477115 | 3 | 8.0 | - - | 80 | 208 | 185 | C1574 | 1.3 |
| 4513877126 | 3 | 15.0 | - - | 100 | 283 | 200 | C21138/1 | 7.0 |
| 4524077104 | 3 | 23.0 | - - | 140 | 318 | 302 | C26240 | 9.0 |
| 4537577104 | 3 | 32.0 | - - | 180 | 396 | 285 | C30375 | 11.0 |
2)内带压力调节阀
