曼胡默尔NLG Pico(单级)空气滤清器订货编号
| 滤清器系列 | 订货编号 | 图例 | 额定流量[m3/min] | 滤芯备件 | 大约重量[kg] | ||
| 不带安全芯 | 带安全芯 | MANN-FILTER主滤芯 | MANN-FILTER安全芯 | ||||
| NLG 15-12 | 4451385901 | 4451385950 | 1 | 10-18 | C23513 | CF1240 | 3.3 |
| 4451385902 | 4451385951 | 2 | |||||
| 4451385900 | 4451385952 | 3 | |||||
| NLG 15-15 | 4463285905 | 4463285951 | 1 | 10-18 | C23632/1 | CF1250 | 3.6 |
| 4463285906 | 4463285952 | 2 | |||||
| 4463285900 | 4463285950 | 3 | |||||
| NLG 15-18 | 4475085903 | 4475085951 | 1 | 10-18 | C23750 | CF1260 | 4.3 |
| 4475085904 | 4475085950 | 2 | |||||
| 4475085901 | 4475085952 | 3 | |||||
| NLG 21-18 | 4474285905 | 4474285950 | 1 | 12-24 | C25740 | CF1420 | 4.3 |
| 4474285906 | 4474285952 | 2 | |||||
| 4474285904 | 4474285953 | 3 | |||||
| NLG 21-21 | 4486085908 | 4486085952 | 1 | 12-24 | C25860/2 | CF1430 | 4.6 |
| 4486085909 | 4486085953 | 2 | |||||
| 4486085900 | 4486085951 | 3 | |||||
| NLG 21-24 | 4486085911 | 4486085954 | 1 | 12-24 | C25990 | CF1440 | 5.1 |
| 4486085912 | 4486085950 | 2 | |||||
| 4486085904 | 4486085955 | 3 | |||||
| NLG 28-24 | 4492085926 | 4492085950 | 1 | 18-30 | C271020 | CF1630 | 5.2 |
| 4492085927 | 4492085955 | 2 | |||||
| 4492085916 | 4492085956 | 3 | |||||
| NLG 28-28 | 4492085915 | 4492085954 | 1 | 18-30 | C271170 | CF1640 | 5.6 |
| 4492085914 | 4492085957 | 2 | |||||
| 4492085904 | 4492085952 | 3 | |||||
| NLG 28-32 | 4492085928 | 4492085958 | 1 | 18-30 | C271320 | CF1650 | 6.3 |
| 4492085924 | 4492085951 | 2 | |||||
| 4492085918 | 4492085959 | 3 | |||||
| NLG 37-32 | 4493085912 | 4493085950 | 1 | 25-45 | C301330 | CF1820 | 6.4 |
| 4493085913 | 4493085956 | 2 | |||||
| 4493085902 | 4493085957 | 3 | |||||
| NLG 37-37 | 4493085908 | 4493085958 | 1 | 25-45 | C301530 | CF1830 | 7.4 |
| 4493085909 | 4493085959 | 2 | |||||
| 4493085900 | 4493085951 | 3 | |||||
| NLG 37-42 | 4493085914 | 4493085955 | 1 | 25-45 | C301730 | CF1840 | 7.9 |
| 4493085915 | 4493085952 | 2 | |||||
| 4493085901 | 4493085954 | 3 | |||||

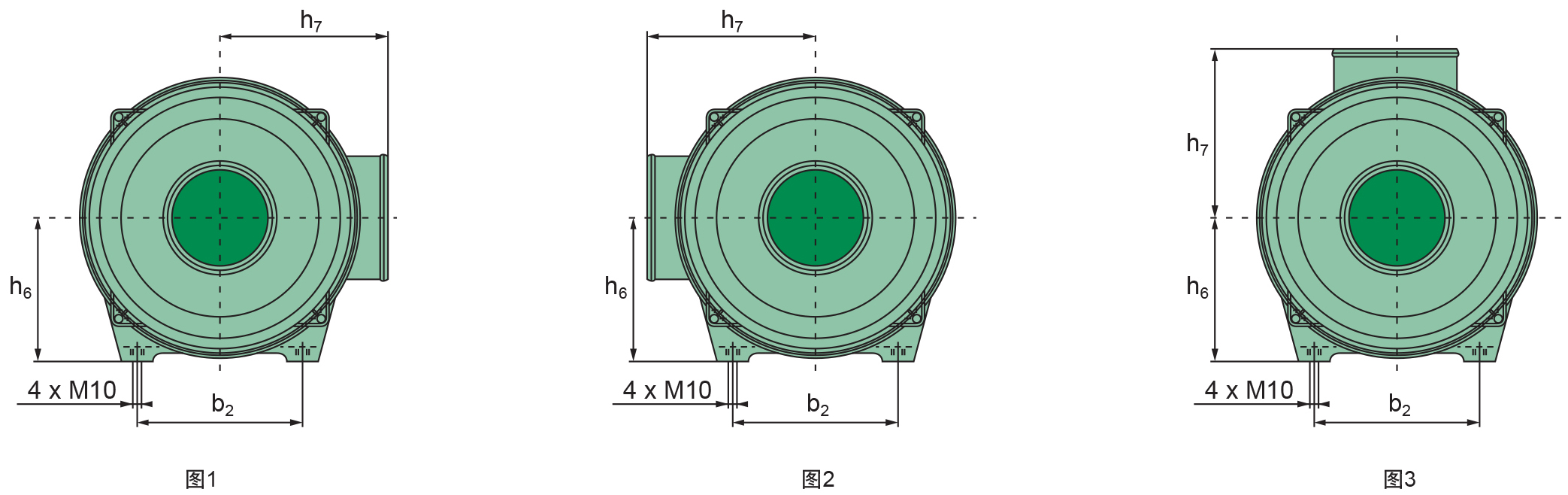

连接尺寸d1=250mm的NLG Pico形式
